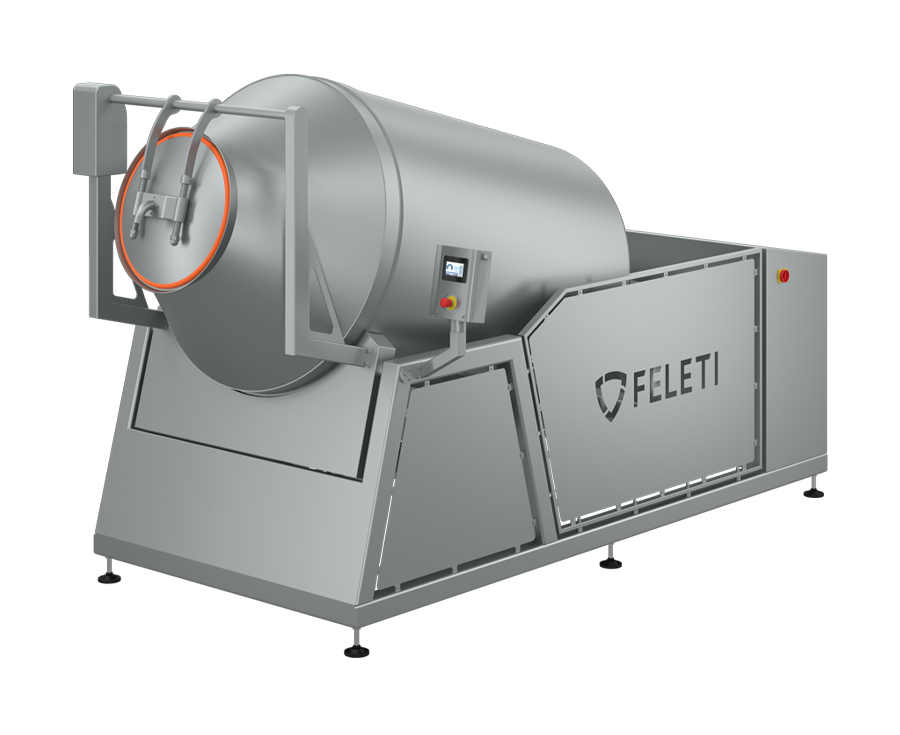

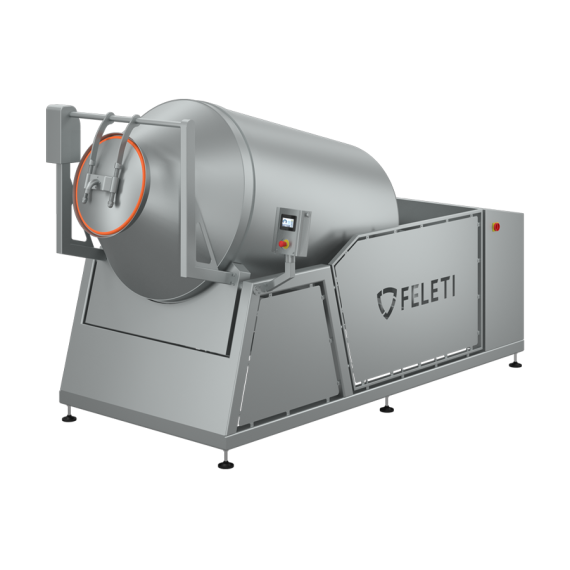

Vacuum tumbler MP-TVN/MP-TVNC
Vacuum tumbler MP-TVN/MP-TVNC
- unloading of the product is carried out by tilting the working tank, which allows it to be filled up to 70%
- full automation allows the massager to be used in a single technological line for the preparation of meat products
- the volume of the drum is 3000-7000 l.
Model range
Drum volume, l
Drum rotation speed, rpm
Power, kW
Voltage, V/Hz
Vacuum pump, m3/h
Dimensions, mm.
MP-TVN 3000
3000
1-13
9
400/50
40
4050х2000х2300
MP-TVN 5000
5000
1-13
15
400/50
60
4550х2200х2400
MP-TVN 7000
7000
1-13
20
400/50
100
4850х2300х2500
MP-TVNC 3000
3000
1-13
15
400/50
40
4050х2000х2300
MP-TVNC 5000
5000
1-13
22
400/50
60
4550х2400х2400
MP-TVNC 7000
7000
1-13
30
400/50
100
4850х2500х2500
✔ reliable strong metal-intensive design ✔ vacuum system with a high degree of filtration and with a moisture separator ✔ vacuum pumping is organized through a shaft ✔ smoothly adjustable speed of rotation of the drum, reverse of the direction of rotation ✔ full control of the product temperature at each stage of massaging (tumbling) of raw meat products ✔ polished drum with several spiral paddles ✔ massager can be built into the technological line ✔ the control panel is compact, hygienic and provides IP54 protection. The touch screen panel has an intuitive clear and pleasant interface, which makes it possible to independently set up product processing programs, control the machine, save the work history - pneumatic/hydraulic loader for tank trolleys or big boxes
- cooling system (polyglycol is used as a refrigerant, which is constantly circulating through a pump)
