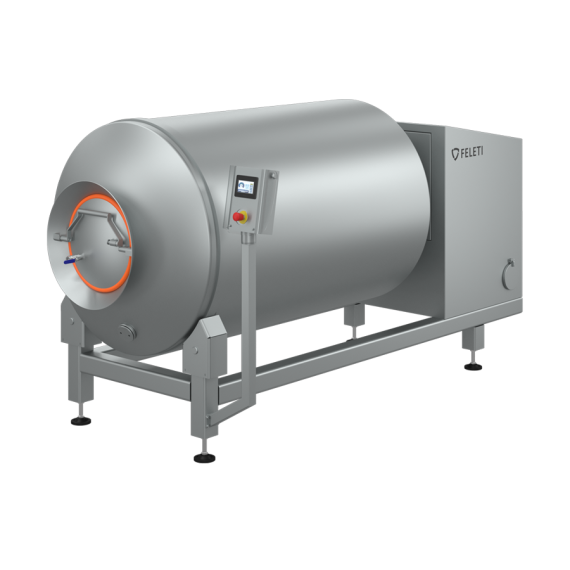

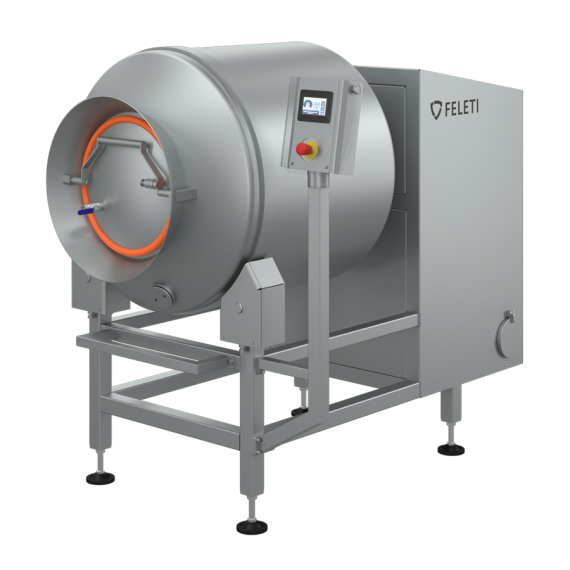

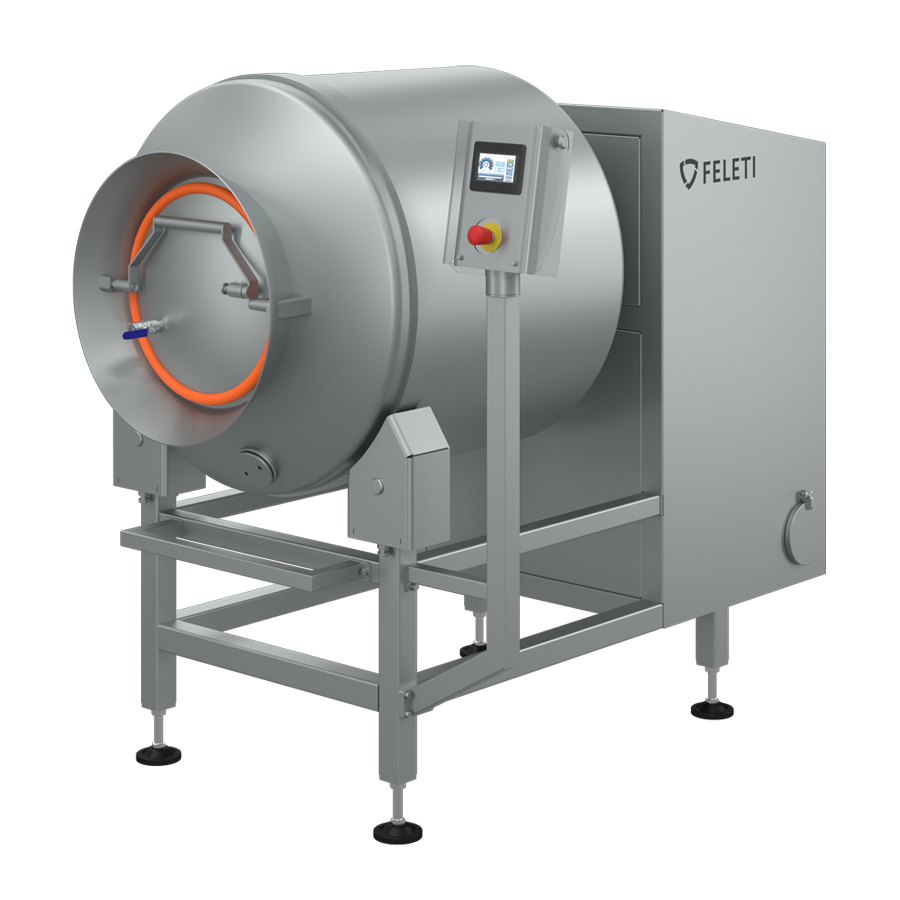

Vacuum tumbler MP-TV/MP-TVC
Vacuum tumbler MP-TV/MP-TVC
- optimizes weight and improves the quality of finished products
- the meat is massaged in a vacuum, which ensures the safety of the end product
- suitable for large and small meat elements, poultry fillets, wings, legs
- drum volume 500-2000 l
Model range
Drum volume, l
Drum rotation speed, rpm
Power, kW
Voltage, V/Hz
Vacuum pump, m3/h
Dimensions, mm.
MP-TV 500
500
1-13
2,5
400/50
25
2000х1250х1600
MP-TV 1000
1000
1-13
3,5
400/50
40
2250х1400х1700
MP-TV 1500
1500
1-13
5
400/50
40
2500х1400х1700
MP-TV 2000
2000
1-13
7
400/50
60
2750х1400х1700
MP-TVС 500
500
1-13
4
400/50
25
2000х1250х1600
MP-TVС 1000
1000
1-13
5
400/50
40
2250х1400х1700
MP-TVС 1500
1500
1-13
6,5
400/50
40
2500х1400х1700
MP-TVС 2000
2000
1-13
8,5
400/50
60
2750х1400х1700
✔ reliable strong metal-intensive design ✔ vacuum system with a high degree of filtration and with a moisture separator ✔ vacuum pumping is organized through a shaft ✔ smoothly adjustable speed of rotation of the drum, reverse of the direction of rotation ✔ closed cooling circuit around the entire perimeter of the drum with effective insulation to reduce heat loss ✔ glycol is used as a refrigerant, which is constantly circulated by means of a pump ✔ ull control of the product temperature at each stage of massaging (tumbling) of raw meat products ✔ polished drum with several spiral paddles ✔ massager can be built into the technological line ✔ control and settings are carried out from the touch screen panel, which ensures automatic operation, easy maintenance and configuration, as well as saving the program parameters ✔ the control panel is compact, hygienic and provides IP54 protection. The touch screen panel has an intuitive clear and pleasant interface, which makes it possible to independently set up product processing programs, control the machine, save the work history of each operator with the ability to track all errors of incorrect work in case of product damage. - pneumatic/hydraulic loader for tank trolleys or big boxes
- cooling system (polyglycol is used as a refrigerant, which is constantly circulating through a pump)
