Grinder with corner feeding system MP-GA is designed for grinding fresh and frozen meat (up to -20°C) to the required granulation, as well as for performing other technological operations depending on the equipment used.
- Products & SolutionsWashing machines
- Crate washer LUREA TEC/TSC
- Eurobin washer LUREA KEB/KSB
- Washing machine for Plastic Box Pallet LUREA KEB/KSB
- Washing machine for pallets and shelves LUREA TEP/TSP
- Frame washer LUREA KECt/KSCt
- Washing machine for utensils LUREA KETo/KSTo
- Washing machine for smoking hangers MMB
- Washing machine for tools and equipment parts LUREA KETo/KSTo
- Washing machine for hooks and trolleys LUREA TETo/TSTo
- Washing machine for live poultry crates LUREA TEC/TSC
- Knives and blades washer LUREA TETo/TSTo
Production hygieneServices & Spares- Contacts

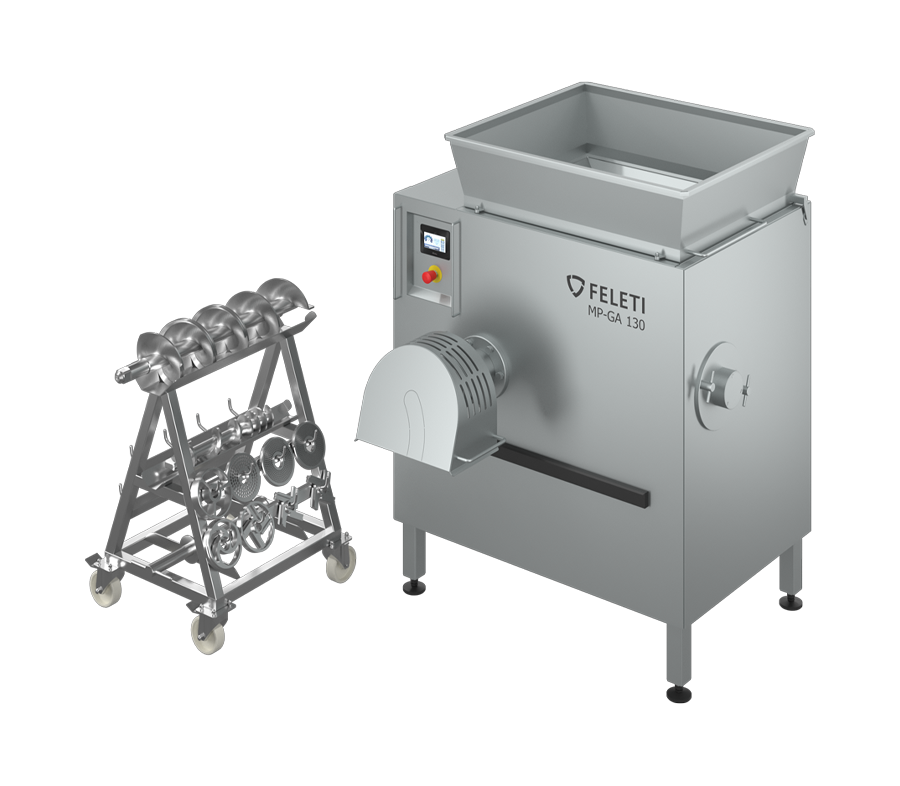

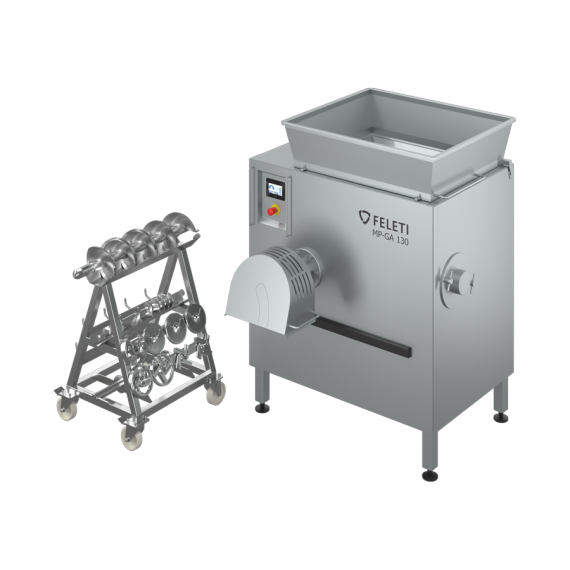

Angle meat grinder for fresh and frozen meat MP-GA
Angle meat grinder for fresh and frozen meat MP-GA
- ensures safety during operation due to its sturdy and reliable product body, as well as high-quality stainless steel blades
- durability and reliability during daily operation
- grid diameter: 130 - 200 mm
- hopper capacity: 220 - 370 l
Model range
Grid diameter, mm.
Hopper volume, l.
Power, kW
Voltage, V/Hz
Weight, kg.
Dimensions, mm.

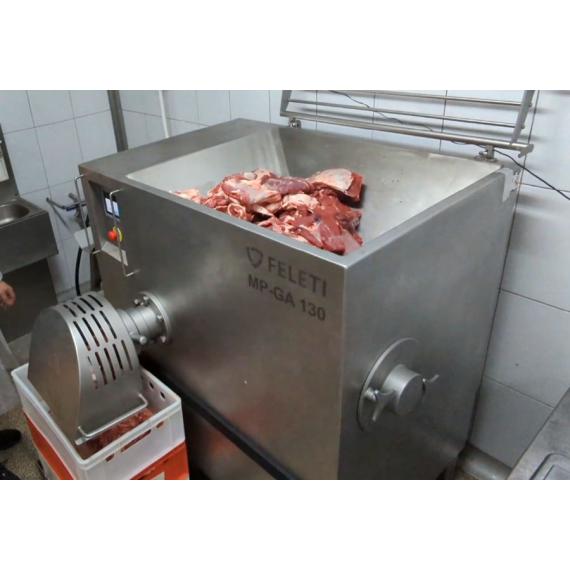

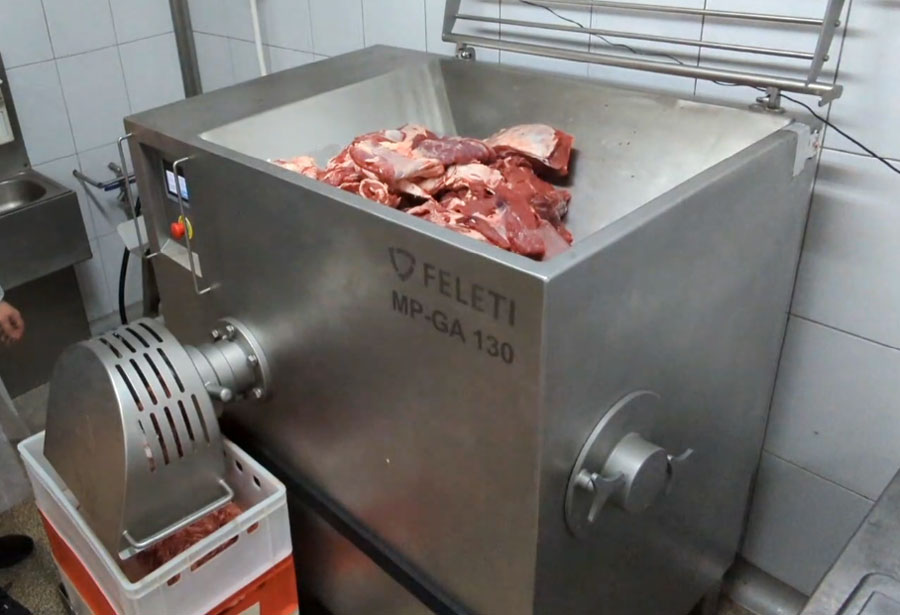

MP-GA 130
130
220
17,5
400/50
700
1250х1300х1650

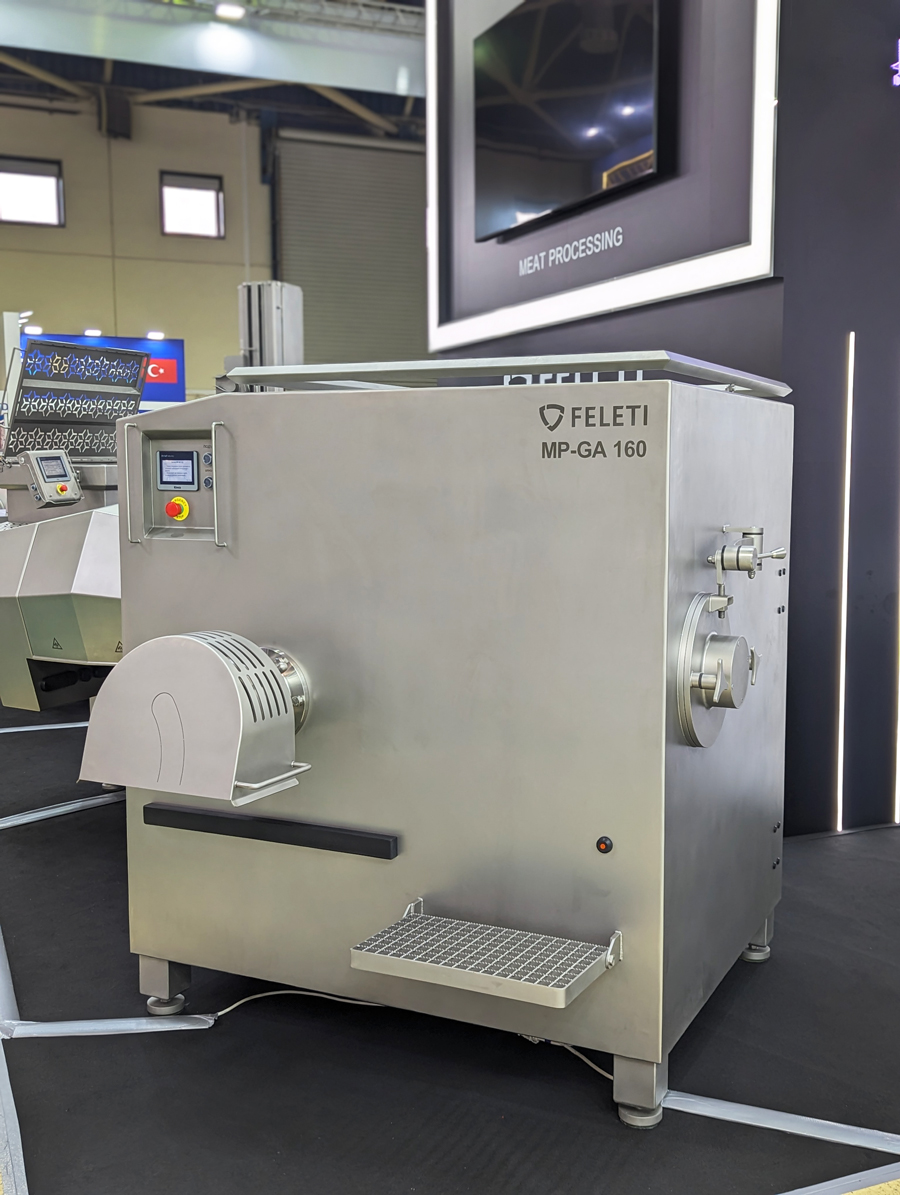

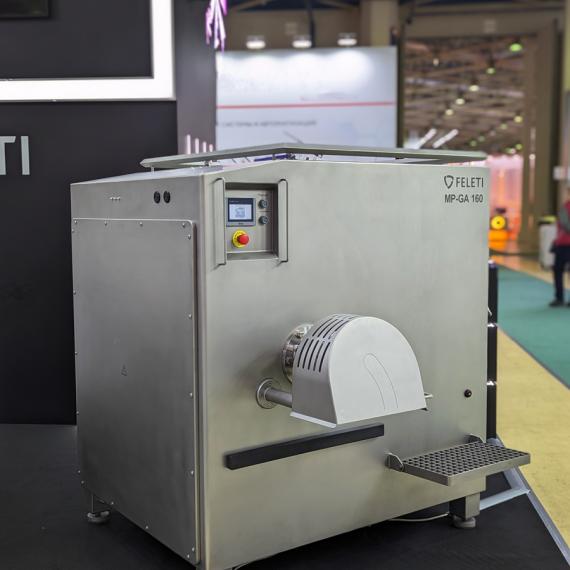

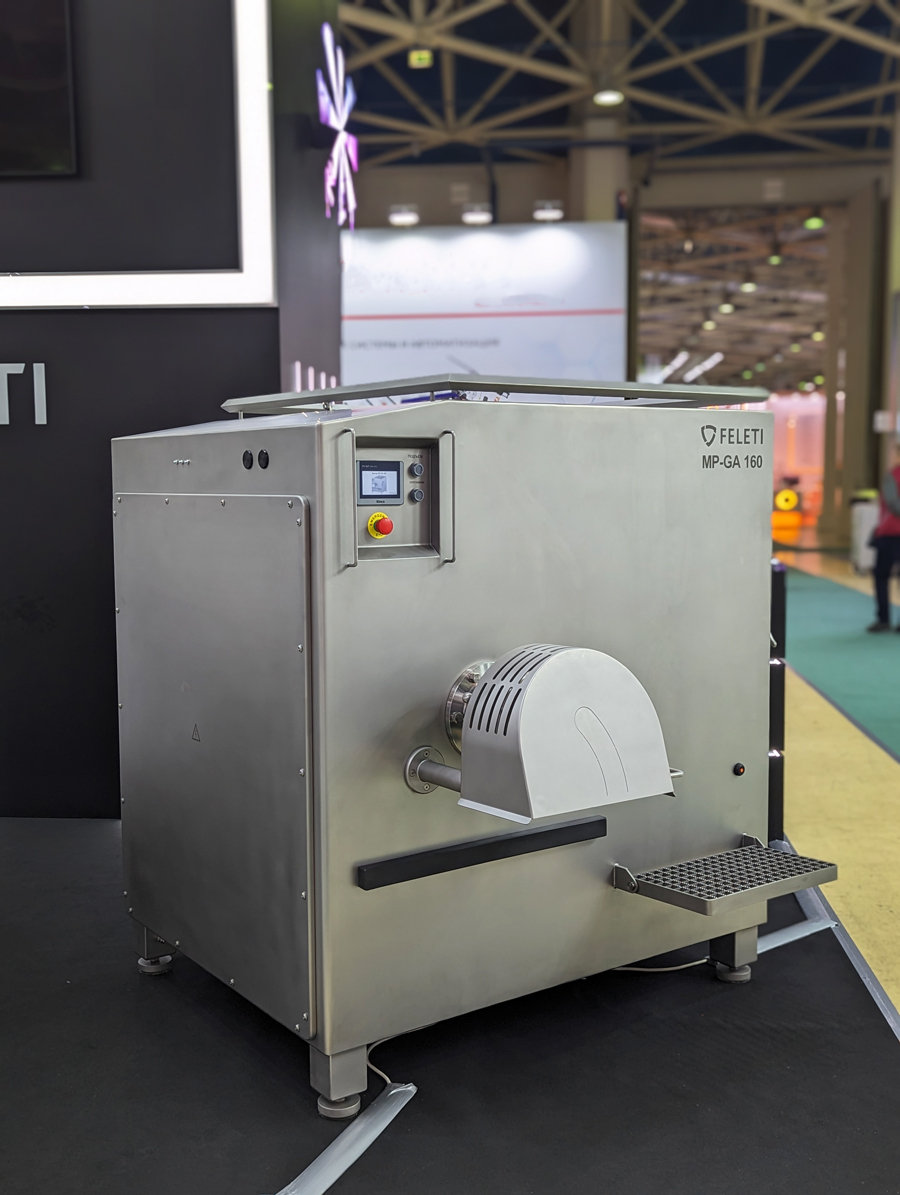

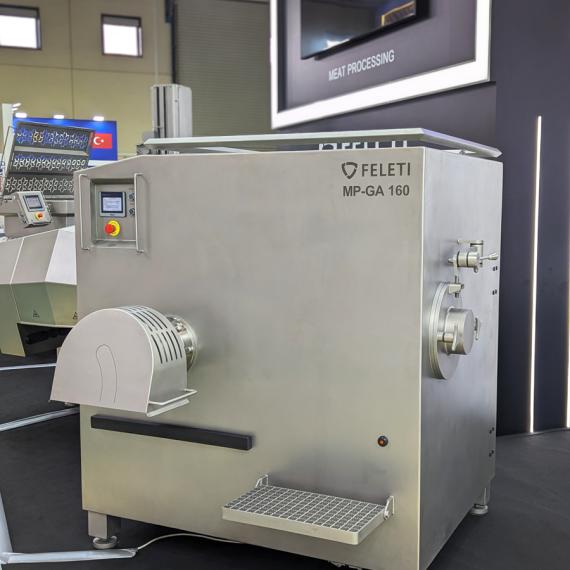

MP-GA 160
160
370
48
400/50
1600
1600х1600х1800
MP-GA 200
200
370
58
400/50
1800
1600х1800х1800
✔ the device is made of high quality AISI 304 stainless steel. External surfaces are shot-blasted; surfaces in contact with the product are ground
✔ reliable strong metal-intensive design ensures mechanical strength and convenient equipment maintenance
✔ touch screen control panel

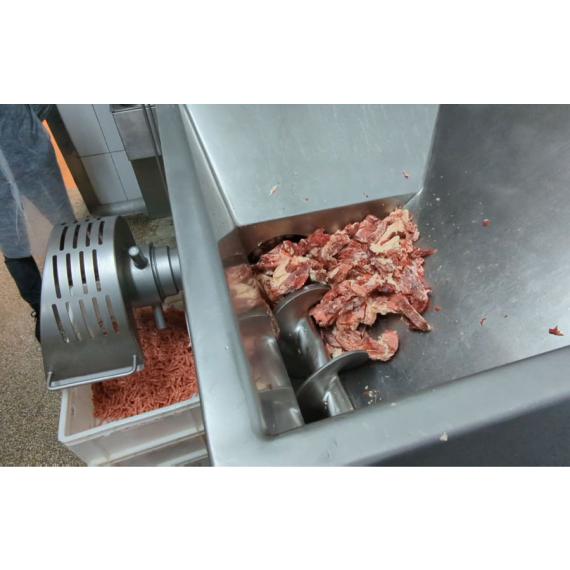

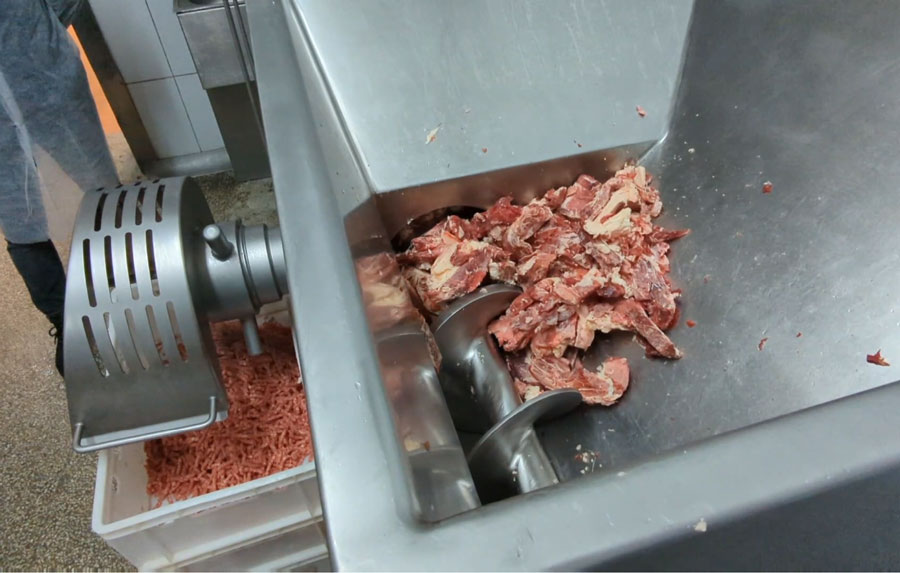

✔ the meat grinders have a hyperbolic shape of the feeding zone, which prevents the chopped raw materials from getting stuck
✔ the throat of the meat grinder has a system for easy installation and disassembly of the cutting kit, the configuration of which depends on the technological needs
✔ the cutting system includes high-quality tools (knives, double-sided cutting knives, grids with various hole diameters)
✔ for safety reasons, the machine is equipped with a protective cover for the throat, which protects the operating personnel and eliminates the risk of splashing minced meat beyond the workspace. The cover also has a lockout system to prevent opening during operation.
✔ there is a protective frame along the perimeter of the loading hopper for an emergency stop of the machine
✔ meat grinder can be equipped with an external device for separating cartilage and films

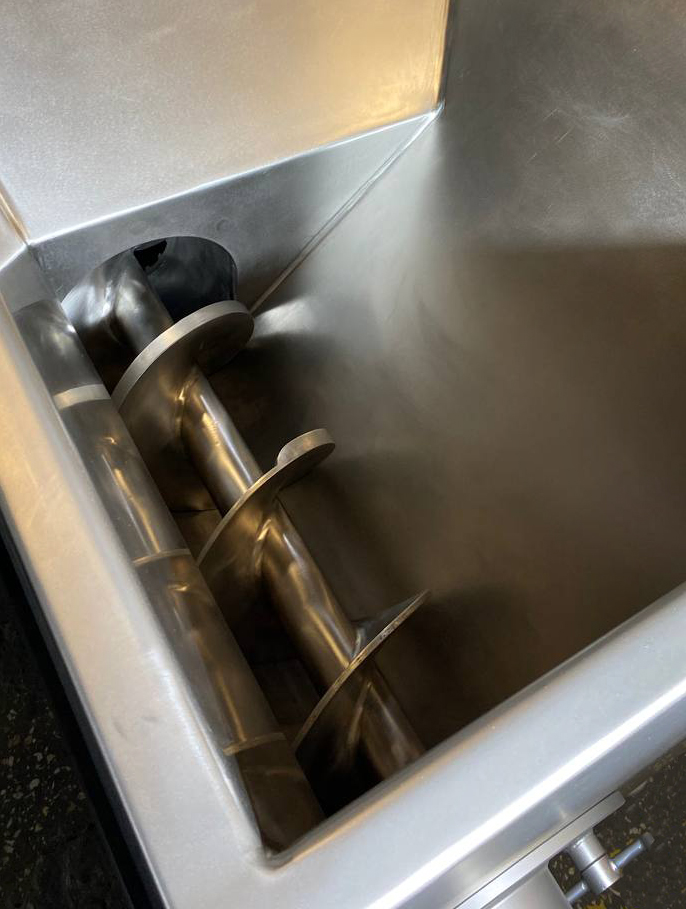

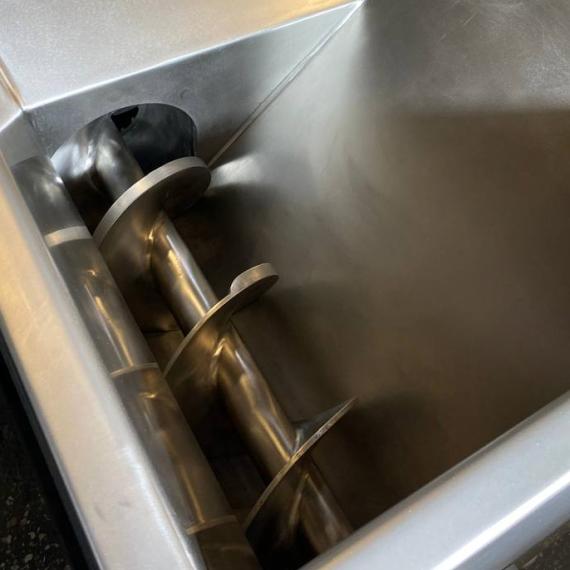

✔ convenient system of access to the feed screw greatly facilitates the sanitary washing of equipment ✔ the pressure chamber with a working auger is made of a durable material, which enhances the wear resistance of the components, while the pressure equalization system inside the chamber eliminates the undesirable effect of compressing the raw material
✔ adjustable screw rotation speed
✔ easy replacement of cutting tools
✔ presence of technological holes for CIP-washing of hard-to-reach places in the cavities of the working screw
✔ the grinder can be built into the technological line
✔ the presence of a trolley for storing cutting tools
- lifting loader for tank trolley
- device for mechanical meet trimming
- hydraulic ejector of the working screw
