Designed for disinfection and cleaning of footwear of personnel before entering (exiting) the sanitary zone.

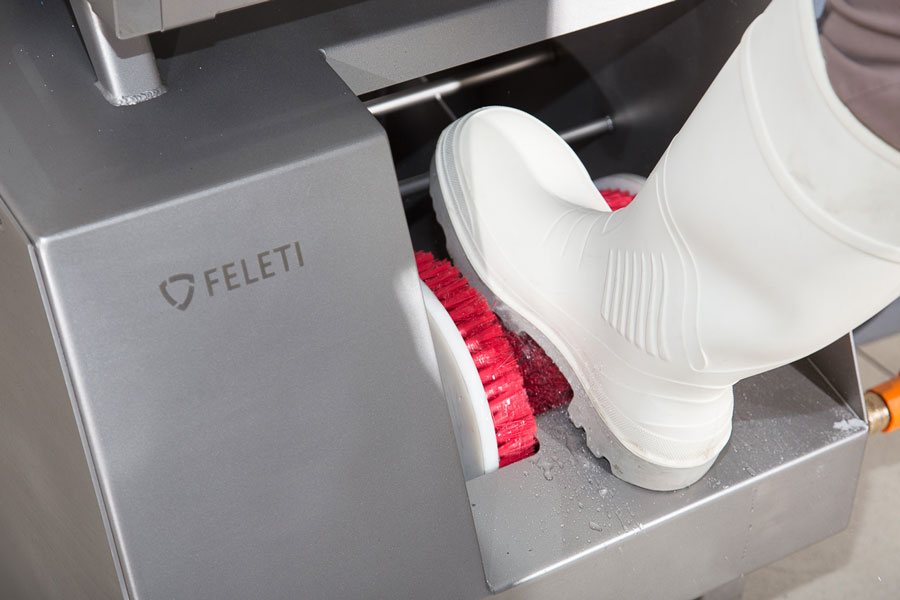

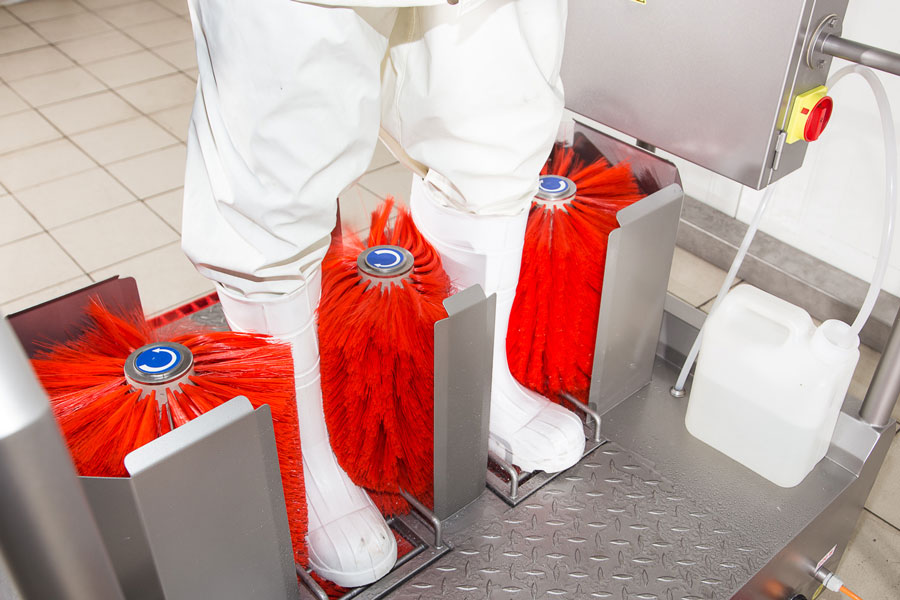

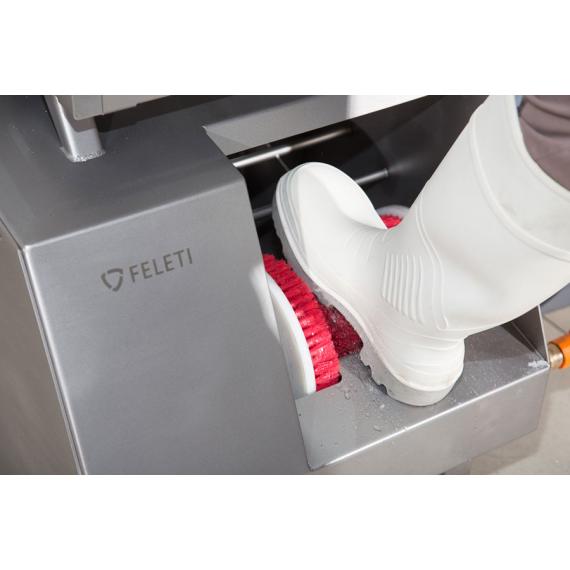

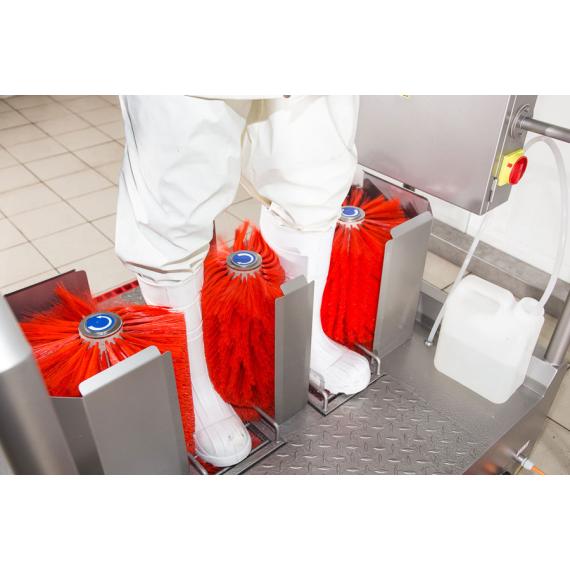

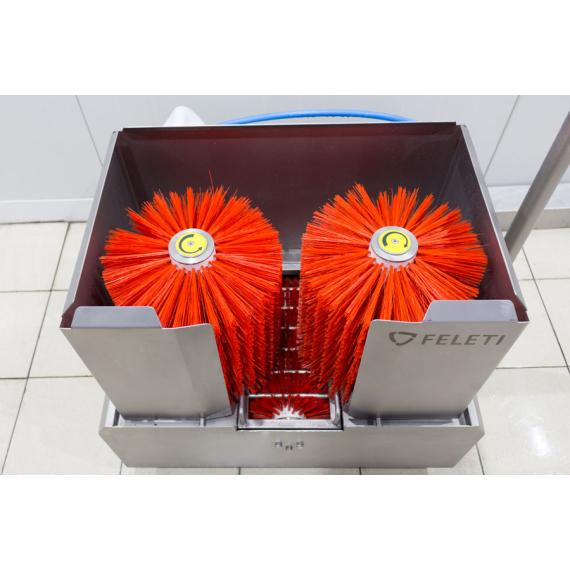

They can include horizontal and vertical brushes for shoe cleaning, disinfection baths.
The FELETI hygiene stations will allow passing sanitary checks at food production facilities. They comply with HACCP principles.
|
Model |

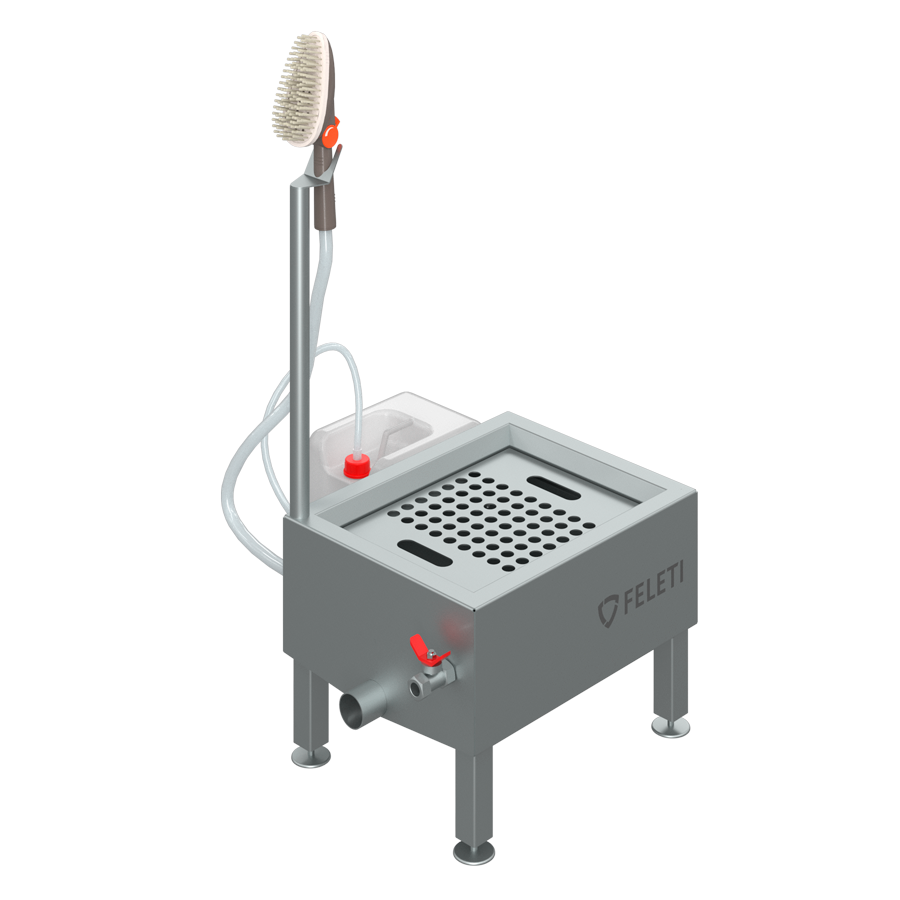

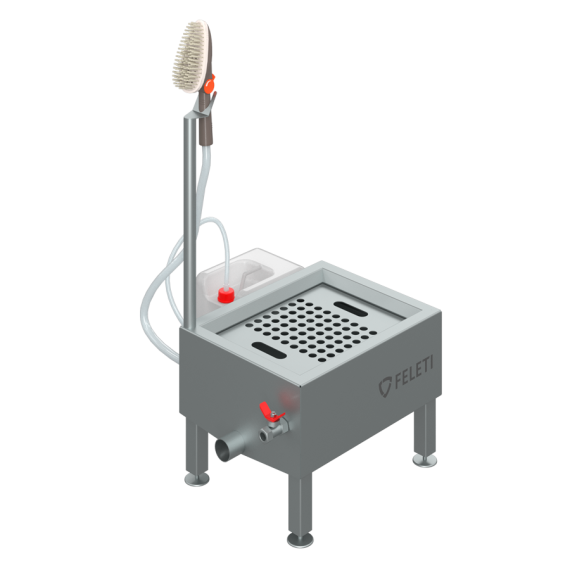

SN-1 |

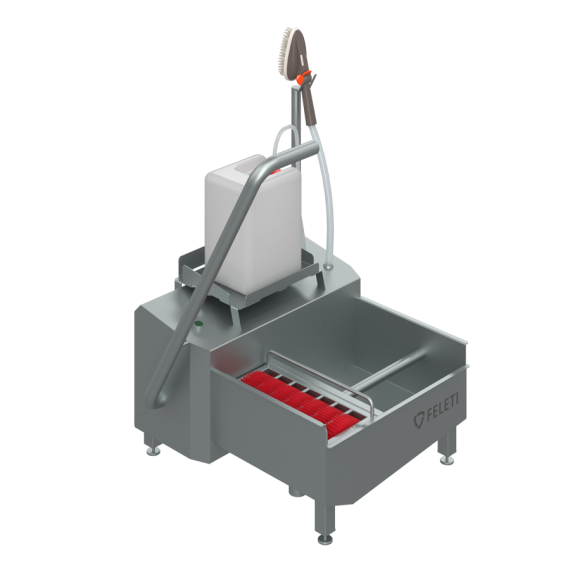

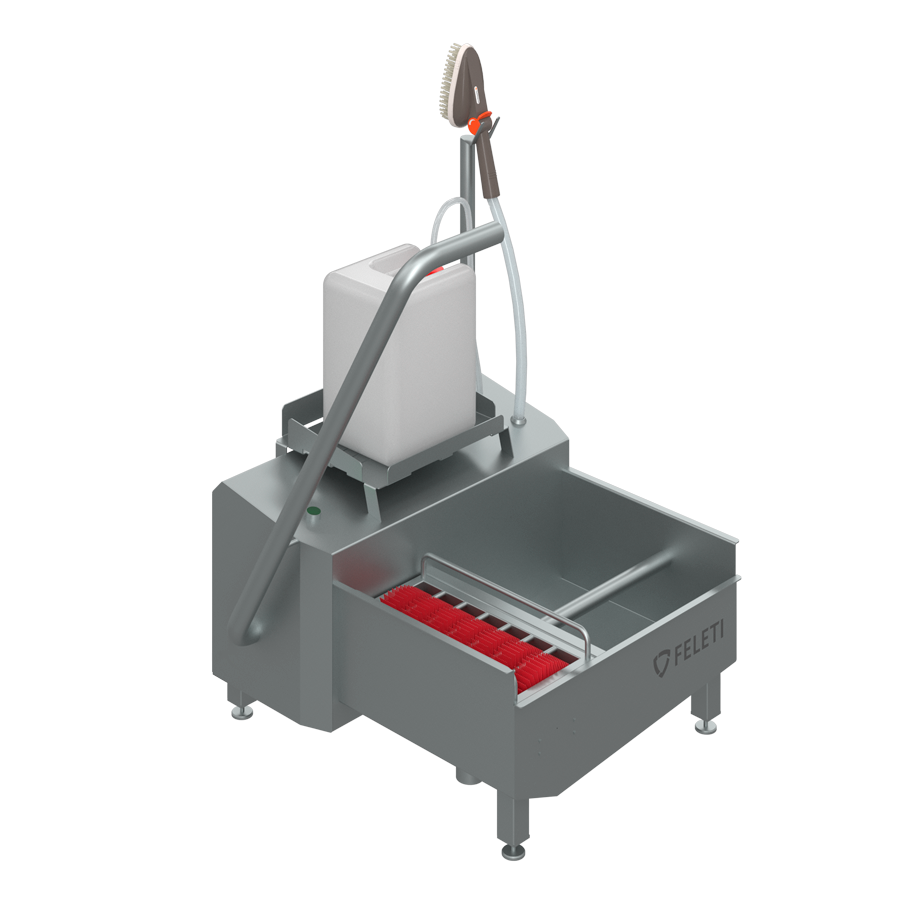

SN-2 |

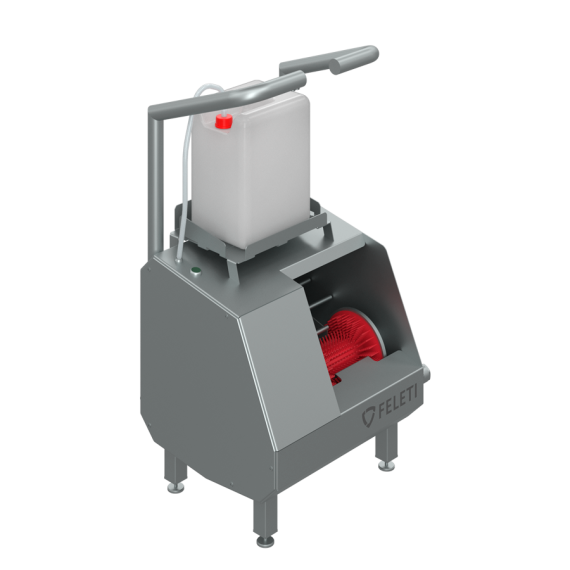

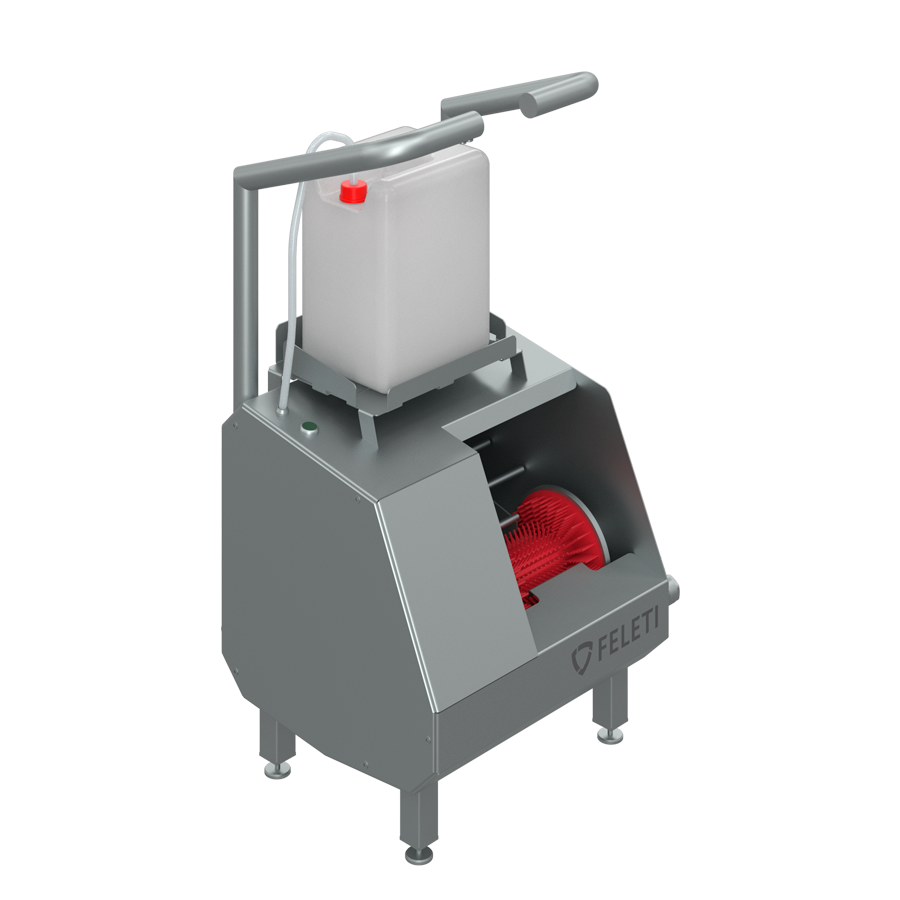

SN-3 |

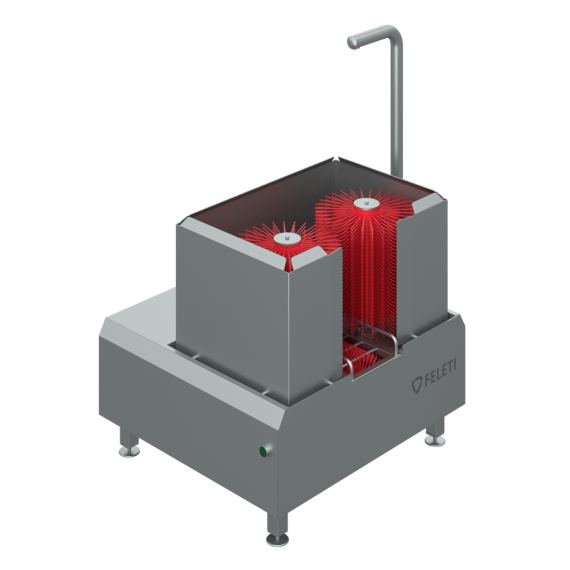

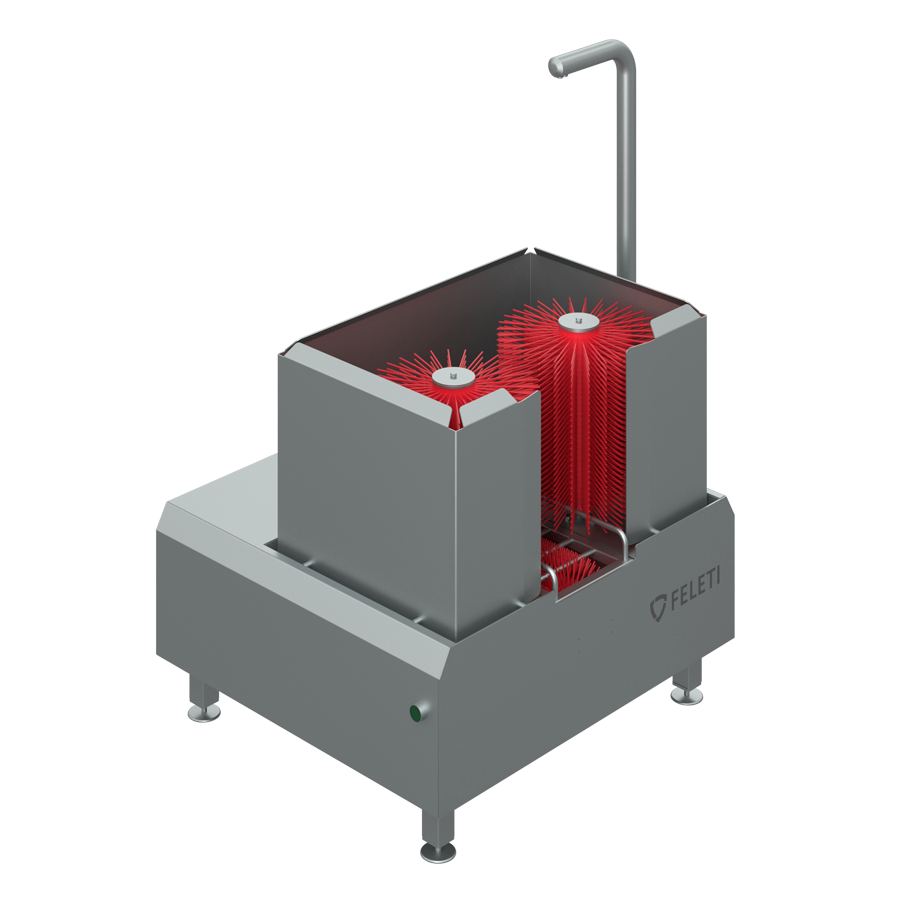

SN-5 |

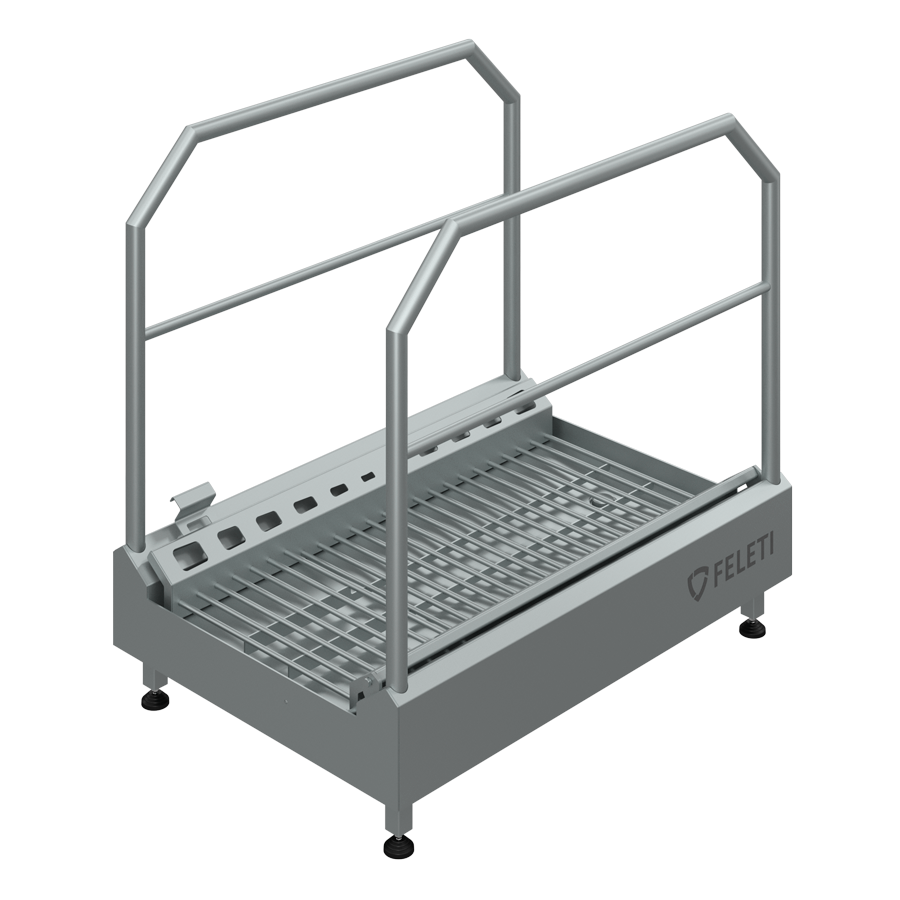

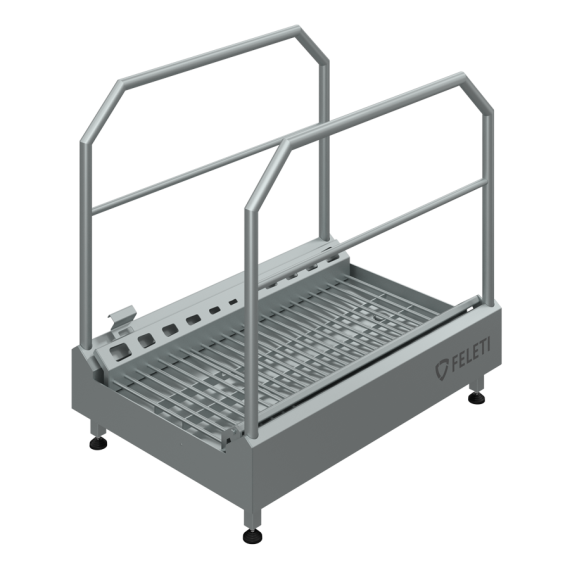

SNP-1 |

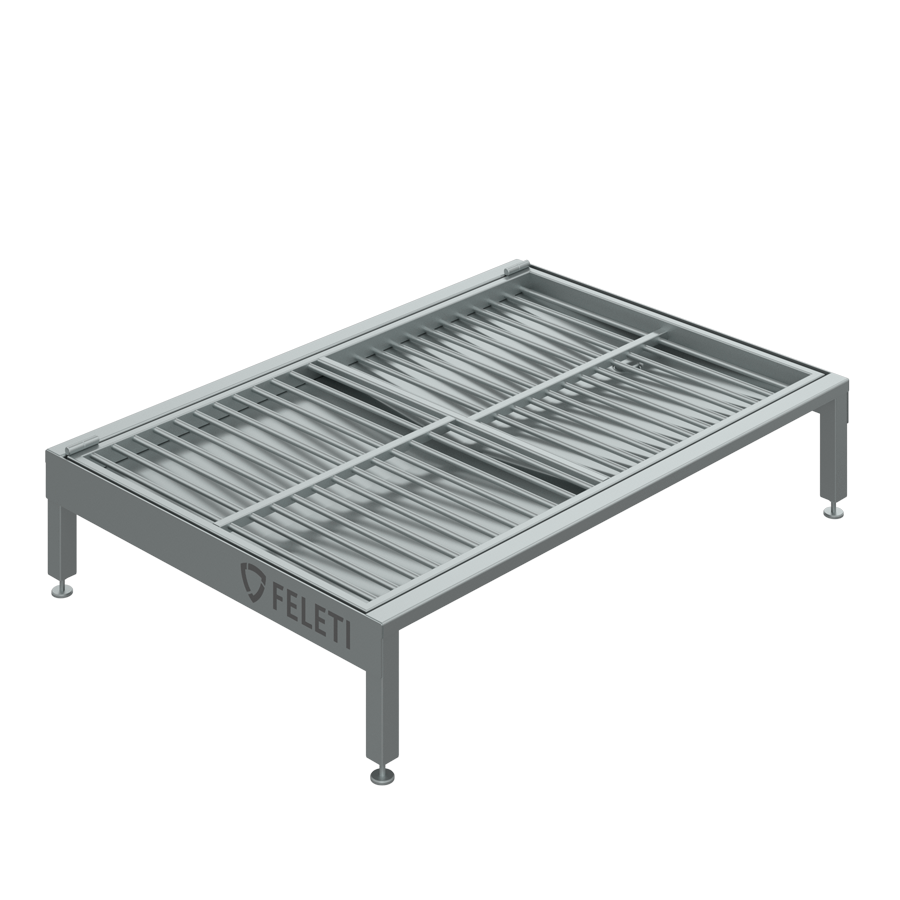

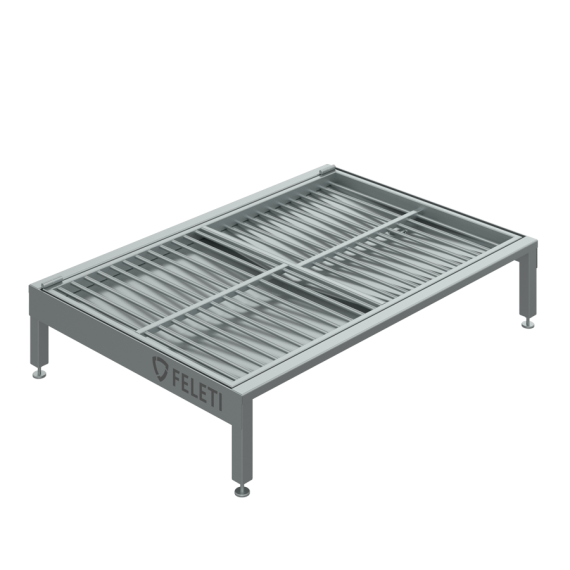

SNP-1B |

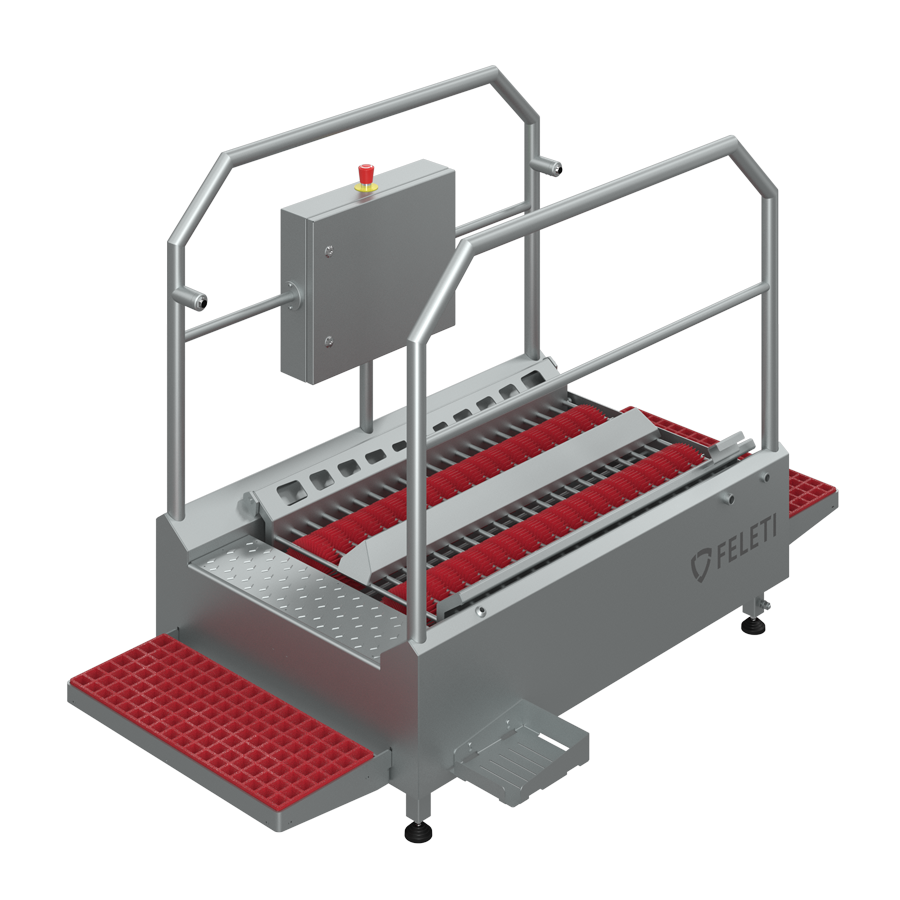

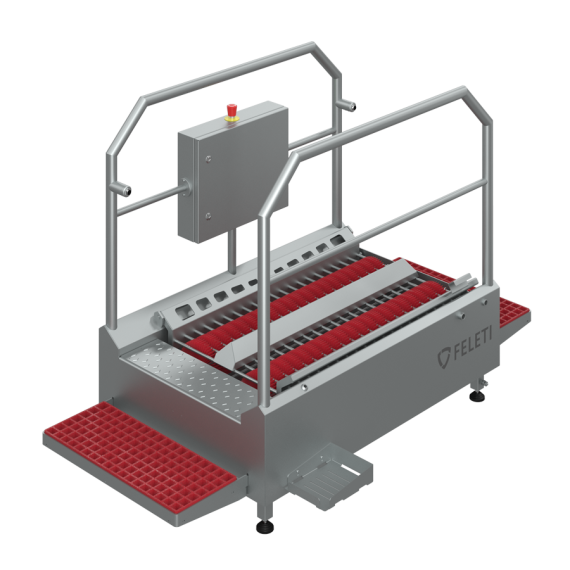

SNP-2/900 |

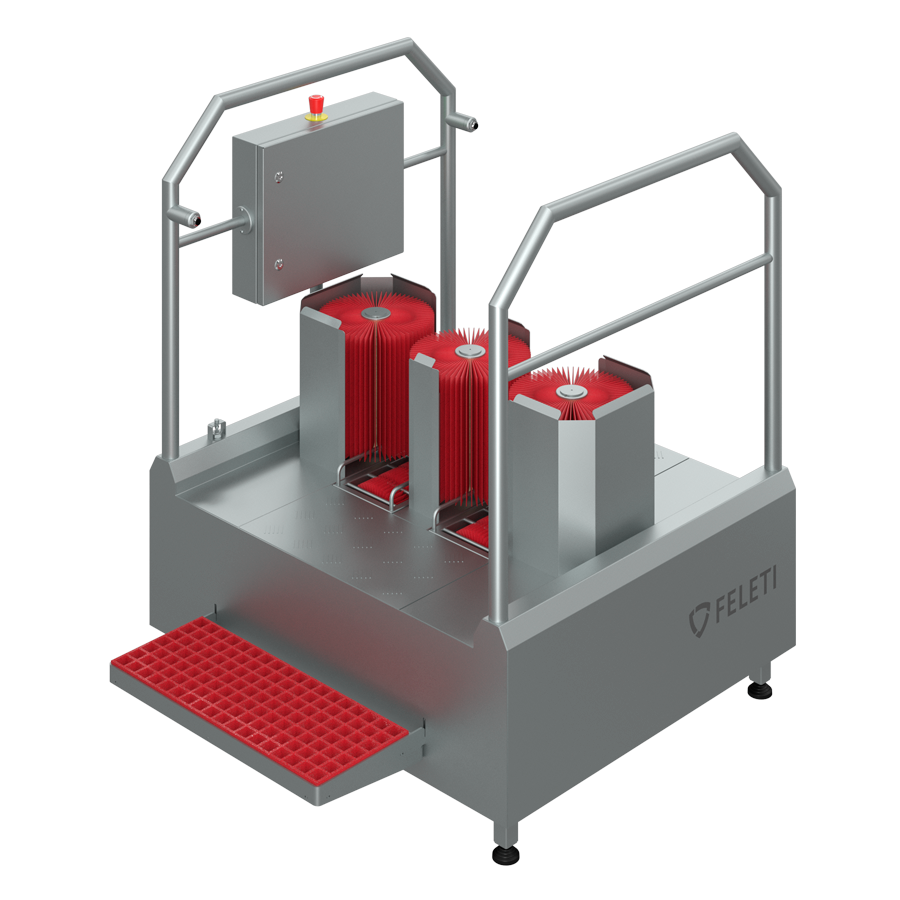

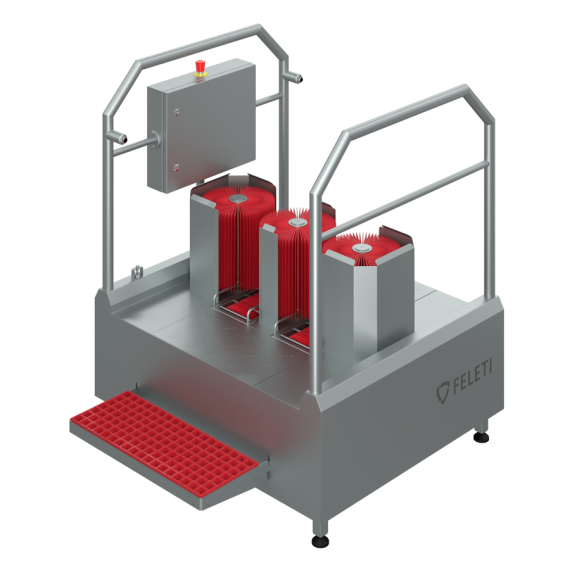

SNP-3/300 |
|
Photo |
|
|
|
|
|
|
|
|
|
Dimensions, mm |
1510х1090 х1510 |
2070х1090х1510 |
1950х1090х1620 |
2400х1090х1620 |
1250х865х1200 |
1300х900х270 |
1950х865х1250 |
1680х1200х1400 |
|
Electrical connection |
- | 400 В, 50 Hz | 400 В, 50 Hz | 400 В, 50 Hz |
- |
- |
400 В, 50 Hz |
400 В, 50 Hz |
|
Power, kW |
- |
0,5 |
0,5 |
1 |
- |
- |
1 kW |
1,5 kW |
|
Type of protection |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
|
Water connection |
G ½; 0,3 MPa |
G ½; 0,3 MPa |
G ½; 0,3 MPa |
G ½; 0,3 MPa |
|
|
G 3/4; 0,3 MPa |
G 3/4; 0,3 MPa |
|
Drain, DN |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Throughput capacity, person/min |
3 |
6 |
6 |
6 |
12 |
12 |
12 |
14 |
|
V disinfection baths, l |
- |
- |
- |
- |
25 |
25 |
- |
- |
|
The consumption of the disinfectant, ml/ person |
- |
- |
- |
- |
- |
- |
550 |
550 |
|
Water consumption, l/person |
- |
- |
- |
- |
- |
- |
1 |
1 |
|
Horizontal brush, mm |
- |
325хØ190 |
210хØ200 |
325хØ190 |
- |
- |
2х1010хØ190 |
2х330хØ190 |
|
Vertical brush, mm |
- |
- |
- |
325хØ300 |
- |
- |
- |
3х325хØ300 |
| ✔ adjustable supports |
|
✔ passive disinfection of shoes |
|
✔ hygienic design without linings, seams, plastic |
|
✔ degree of protection: IP54 according to GOST 14254-96 |
|
✔ the main body is made of stainless steel AISI 304 with a thickness of 2 mm |
|
✔ quick-release brushes without the need for additional tools |
|
✔ non-slip grating in the entrance and exit area |
